Stripax Pro: Short version, get this one if wire stripping is part of your daily routine.
- 16 comments, 26 replies
- Comment
(Ok, that finally worked, here’s another chunk.)
The only downside is the price, which is why I mentioned “daily”. It’s hard to justify $90-150 for a wire stripper unless you use it a lot. But if you do, this one just plain works. I was introduced to it about 25 years ago when I started a new job. Based on my past experience I looked at it, and said to myself “That thing will never work”. But it did, and it does. The orange block in the jaws is just a depth stop, set it for how much insulation you want to strip, and you can do it repeatedly. On the top there’s an insulation thickness adjustment, but in real life, you don’t need to mess with it very often. I just leave in the middle of the range most of the time.
(Still breaking things. Here’s another piece.)
Somehow the thing just auto-adjusts to the wire & insulation, and does the right thing. And it cleanly strips the insulation, even though its only cutting it in two spots. The only insulation it has trouble with is Teflon, but they make a special model for that. And I’ve occasionally seen double-jacketed cable, where there’s a thin clear layer over the top of the main insulation. That needs two passes, one for the clear, and one for the regular insulation. And thick silicone insulation cuts with a bit of a taper to it, instead of a clean break.
It also has a handy, high leverage wire cutter built into it.
And the Stripax makes a satisfying ker-klack when you use it. What more could you ask for?
There are a variety of models in the Stripax line, and they’ve changed some over the years, and the brand has been sold once or twice. Mine is a Paladin, but Greenlee seems to own it now, or maybe it’s Weidmüller. It also gets rebranded.
(Now some links to break things. Yep, broke it again. Ok, may have found the offending link.)
Ok, it was the Stripax Mini photo (among others) that was breaking things.
The Harbor Freight knockoff mangles wire as much as it strips it. Stay away!
(Time to get cocky, and post the rest.)
The Stripax isn’t much use on wire-wrap wire (ultra tiny 30 gauge), it tends to break the wire instead of stripping it. But you just need the right tool for the job, like this one from CK Tools.
Not cheap at $50-100, but great for tiny gauge wire.
Another specialized stripper is the Jokari cable knife. It’s designed to slit the outer insulation on multi-conductor cables. Set it for the right depth, the place it however far down the cable you want the outer jacket removed, then rotate around the cable a couple of times to make the cut, and then pull it to the end of the cable to slit the jacket from your cut to the end of the cable.
For coax cable, the Weidmuller CST is brilliant because it does a three-level strip (center conductor, braided sheath, outer jacket) in one pass.
Here’s a cheaper auto-adjust stripper.
This one is kind of middle ground between the above auto stripper, and the conventional strippers. It only works with specific gauges, but it pulls off the stripped insulation for you. Some have a strip length gauge as well.
Conventional strippers, with one hole or notch per wire gage are probably the best tool for occasional use. They cleanly cut the insulation, without damaging the wire. (If you use the right hole!) The worst thing you can do when stripping wire is nick it. If you outright break it, you know you’ve got a problem, and will fix it immediately. But a nick will fail later on. And it’s a nearly guaranteed failure, the only question is how long it will take. And these strippers are affordable. There’s a wide variety of them. The downside is they only work for specific wire gauges.
This set has two different wire gauge ranges.
Stay away from this one, it’s designed to nick wires of all sizes. It CAN work if you adjust it properly for each wire size, but nobody does that in real life.

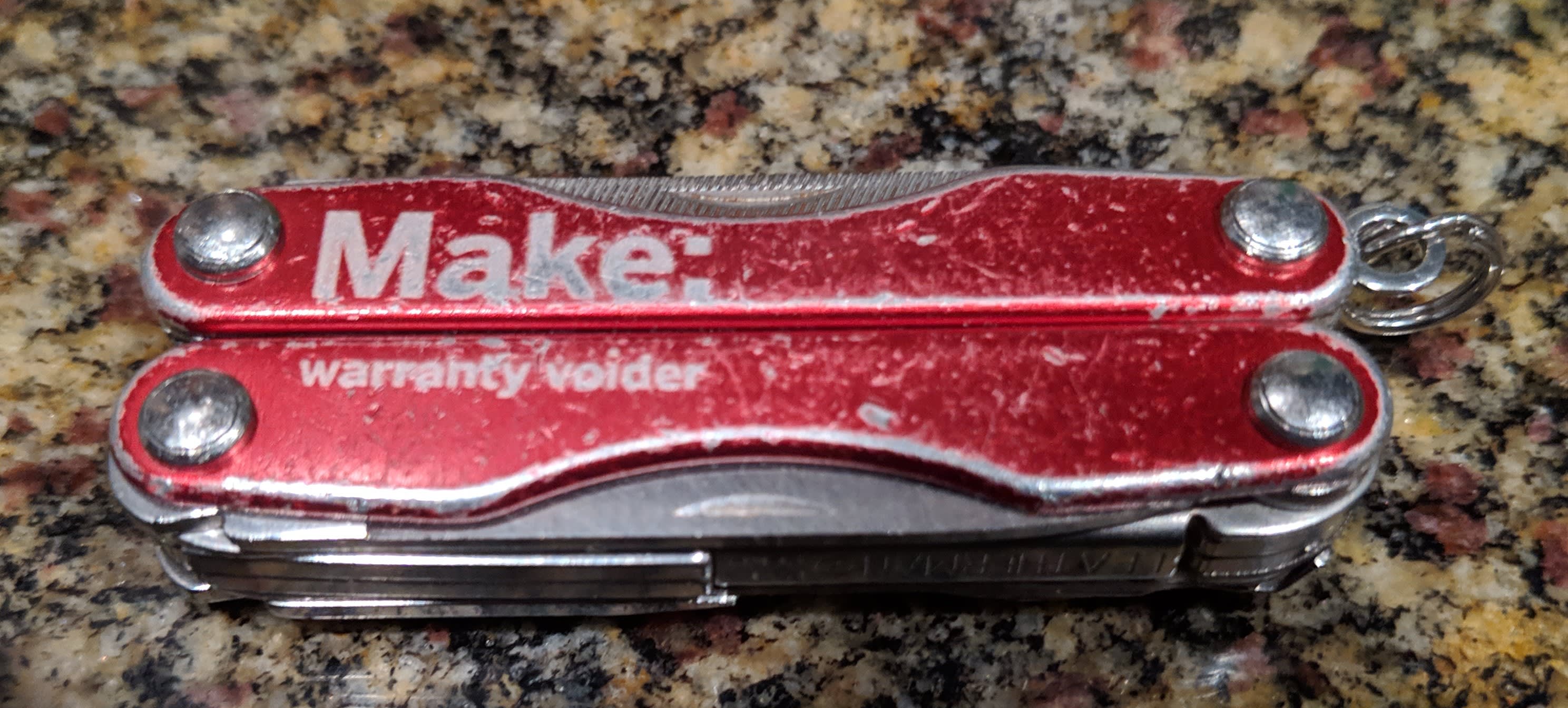

I carry the Leatherman Squirt ES4 all the time. I got mine from Make: magazine, mostly for the labeling!
Instead of the usual Squirt scissors or pliers, it has 20 - 12 gauge wire strippers. Along with the usual assortment of multitool tools. The currently sold ES4 is different from the original one. The aluminum handles have a bit of a curve to them, the tweezers were deleted and scissors added, two sizes of flat screwdriver were traded for one, and the tiny, fully formed #1 Phillips screwdriver was traded for a “2D” version of a Phillips driver.
Most of the strippers mentioned by name have similar products made by many other companies. The exception seems to be the Stripax, I’ve not see a good knockoff of it.
Oh yea, a note on wire gauge: a bigger number means smaller wire and less current carrying capacity. 18 gauge is common household cord wire. 12 gauge is heavy duty extension cord or normal internal building wiring. 30 gauge is tiny electronics wiring. Also, gauges are even numbers only.
